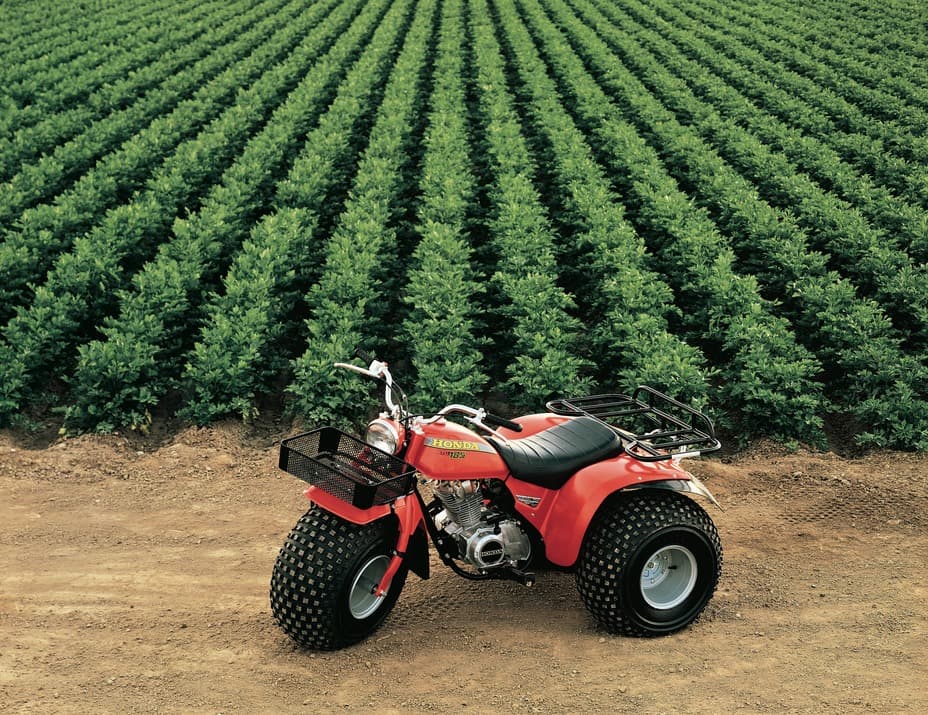

Restoring a vintage machine like a 1980 Honda ATC185 is a rewarding project that connects generations of enthusiasts. However, as many DIY mechanics discover, moving from a disassembled engine to a functioning transmission is rarely a straightforward task. According to a recent inquiry featured in Dirt Wheels, readers often find themselves stuck with a box of parts and outdated documentation that offers little guidance on internal shimming.
The primary challenge in these restorations involves the transmission's thrust washers. While original microfiche diagrams identify these components, they notoriously omit the specific dimensions required for accurate installation. This leaves restorers with a bag of washers and no clear map of where each component belongs, leading to potential gear binding or premature wear if assembled incorrectly.
The Dirt Wheels technical team suggests that relying on legacy microfiche is insufficient for modern rebuilds. Because these documents were designed primarily for parts ordering rather than detailed mechanical assembly, they lack the granular technical data found in modern service manuals. When a local dealership service department declines to assist with such specific vintage issues, builders must look for alternative strategies to ensure the transmission is shimmed correctly.
The recommended approach for those facing this hurdle is twofold. First, one can attempt to purchase a secondary, used transmission assembly. Having an intact unit allows the builder to observe the factory shimming and transfer those components to the primary engine. Alternatively, builders should cross-reference the transmission diagrams and the gearshift drum and shift fork diagrams to order a full set of new thrust washers. By replacing the entire set based on factory part numbers, the builder can ensure that the clearances remain within the original specifications without needing to measure individual, potentially worn-out washers.
Ultimately, these classic three-wheelers represent a significant era in off-road history. While the technical hurdles are daunting, methodical research and the use of modern replacement parts by number can bring these machines back to life, honoring the legacy of the original owners.
